Educational Robots
OS-lite / OS-lite2 ROS1/ROS2 Single-line / Multi-line LiDAR Navigation Autonomous Driving Open-Source EDU Kit
- Autonomous Navigation for Vehicles and Robots
- For Research and Education
- High-Speed Development and Learning Platform
Application Fields
Application field
Supports autonomous driving education for connected cars and mobile robots.
As a hands-on algorithm learning platform, it leverages open-source tools to cover applications from academic exercises to industry use.
Ideal for multi-level education, from beginners to advanced learners.

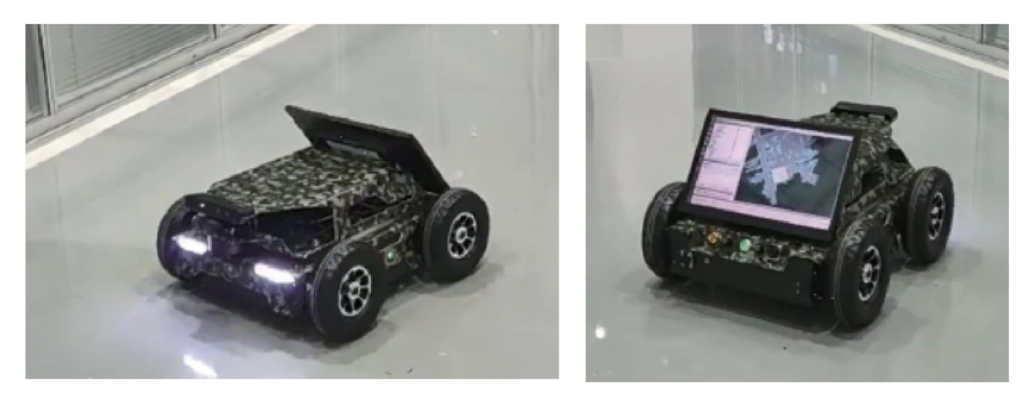

Customer Case Studies
Customer case
Implementation Examples of ROS Educational Robots for Education
Product Specifications
Product parameter
| Size | 380mm × 268mm × 350mm |
| Accuracy | Indoor/Outdoor: ±10cm, Task-level: ±4cm |
| Control System | x86 Architecture / i3-8145U / 2.1GHz |
| LIDAR | Single-line laser LiDAR with 30m range |
| Camera | 1920×1080 @7fps, 640×480 @30fps |
| Sensor | IMU |
| Compatible Series | MFR Series / MK Series / FW Series / DT Series |
| Navigation | Industrial PC, Single-line/Multi-line LiDAR, Path Planning, Depth Camera (Optional), Dual-frequency RTK, IMU |
| Features | Robot control via ROS, environment mapping, localization, path planning, Autonomous driving scenario simulation, Learning functions for map creation, path following, stop control, autonomous driving, signal recognition, and lane assistance |
| Pre-installed Software | Ubuntu / ROS1 / ROS2 |
